Polaris Magnum 425 6×6 ECU Replacement kit

$521.95 inc GST

Polaris Magnum 425 6×6 improved ECU Replacement set
High performance!
Powerfull spark because battery DC as source

Your Quad will perform better with this advanced ignition unit from Carmo electronics!
It will give more speed and better acceleration.

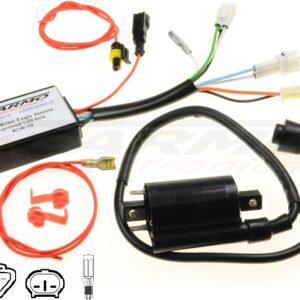

This set includes:
TCI-Bobine
New improved, faster TCI-unit
Electrical wires and mounting material

I have read, understood and agree to the Terms & Conditions set out by Vectriq as shown on the T&C page.
Please note that you need to agree to our T&C's before you can proceed.
Category: SKU: Polaris Magnum 425 6x6 ECU Replacement kit.

Description

This is an improved Polaris Magnum 425 6×6 ECU Replacement.
What’s better compared to the original unit:
– increased protection against over-voltage (such as a defective voltage regulator/rectifier, bad battery).
– higher resistance against a defective ignition coil and reverse battery connection .
acceleration correction: when the RPM increases the ignition delay changes (‘in proportion) resulting in a smoother acceleration.
digital technique: therefor the unit is more accurate and less sensitive to temperature changes.
optimized ignition curve/map to improve engine performance resulting in more power.
spark power control: the unit will change the output to the ignition coil when the battery voltage changes in order to keep the spark power the same.
start mode: during engine start there’s a start delay and the unit will give more current to the ignition coil for a faster start.

This replacement kit can be used in the models below.
Please note that this is just a (small) list of models we know.
We do our best to keep this up-to-date:
Polaris Big Boss 500 6×6 CDI igniter 1998 1999 2000
Polaris Big Boss 500 6×6 Internationale CDI igniter 1999
Polaris Magnum 425 2×4 CDI igniter 1995 1996 1997 1998
Polaris Magnum 425 4×4 CDI igniter 1995 1996 1997 1998 1999
Polaris Magnum 425 6×6 CDI igniter 1996 1997
Polaris Magnum 500 4×4 CDI igniter 1999 2000 2001
Polaris Magnum 500 EB CDI igniter 2000
Polaris Magnum 500 HDS 4×4 CDI igniter 2000 2001
Polaris Scrambler 500 4×4 CDI igniter 1997 1998 1999 2000
Polaris Sportsman 335 Carb CDI igniter 1999 2000
Polaris Sportsman 400 4×4 Carb CDI igniter 2001 2002
Polaris Sportsman 500 4×4 Carb CDI igniter 1996 1997 1998 1999 2000 2001
Polaris Sportsman 500 6×6 Carb CDI igniter 2000
Polaris Sportsman 500 RSE Carb CDI igniter 1999 2000
Polaris Werknemer 335 CDI igniter 1999
Polaris Werknemer 500 CDI igniter 1999
Polaris Xplorer 500 CDI igniter 1997
Polaris Ranger 425 2×4 Carb CDI igniter 2003
Polaris Ranger 500 6×6 CDI igniter 1999
Polaris Ranger 500 Serie 10 4×4 CDI igniter 2003
Polaris Ranger 500 Serie 11 CDI igniter 2004
Polaris Ranger 500 Serie 11 2×4 CDI igniter 2004

OEM numbers:
CU2509 / EH42PL
CU2535 / EH42PL
CU2557 / EH50PL
CU2570
3085639
3084691
3086982
3085564
3085382

Other names:
EC Ignitor, brain, ignition module, Spark unit
CDI, ECU, ECM computer, Black Box, Ignitor
ignition control module, spark box
Ignition Spark Control Module
CDI Ignition, ignitor unit
Blackbox

Polaris Magnum Sportsman Ranger 335 400 425 500 CDI igniter
Model: CARI-PO-335-400-425-500 Polaris Magnum Sportsman CDI set
000.245.000 S120 45

Brand

Carmo Electronics
