Honda VF500 ECU Replacement

$396.14 inc GST

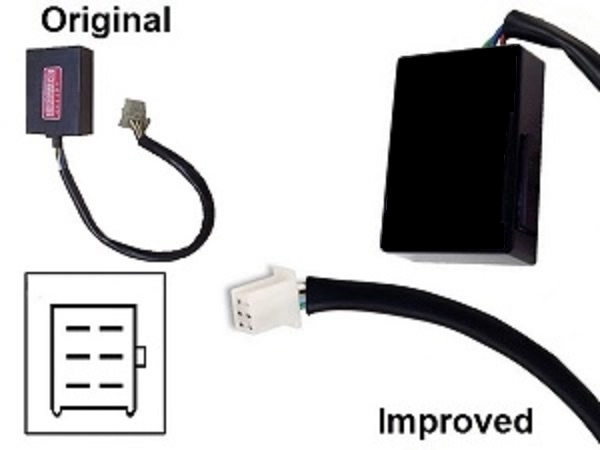

Improved Honda VF500 ECU Replacement
Plug & Play

Our ECU replacement is one of many models designed by motorcycle enthusiasts and manufactured with high quality digital components where possible. Sold all over the world this unit is giving many motorcycle riders the pleasure of improved vehicle performance. Your engine will run better and giving you more riding comfort.

I have read, understood and agree to the Terms & Conditions set out by Vectriq as shown on the T&C page.
Please note that you need to agree to our T&C's before you can proceed.
Category: SKU: Honda VF500 AKBZ Replacement.

Description

This is an improved Honda VF500 ECU Replacement.
What is better compared to the original unit:
– increased protection against over-voltage (such as a defective voltage regulator/rectifier, bad battery).
– higher resistance against a defective ignition coil and reverse battery connection .
acceleration correction: when the RPM increases the ignition delay changes (in proportion) resulting in a smoother acceleration.
digital technique: therefor the unit is more accurate and less sensitive to temperature changes.
optimized ignition curve/map to improve engine performance resulting in more power.
spark power control: the unit will change the output to the ignition coil when the battery voltage changes in order to keep the spark power the same.
start mode: during engine start there’s a start delay and the unit will give more current to the ignition coil for a faster start.

This ECU is used in the models below.
Please note that this (small) list is for reference use only.
We do our best to keep this up-to-date:
Honda VF500F (PC12) CDI
Honda VF500C V30 Magna (PC13) CDI
Honda VF500 Interceptor CDI

OEM numbers:
30400-MJ8-671 / 30410-MJ8-671 / 30410-MF2-671 / 30400-KE7-000 /
30400-KE7-701 / 30410-KE7-000 / 30410-KE7-701 / 30400-MF2-670 /
30400-MF2-671 / 30410-MF2-670 / 30410-MF2-671 / 30400-MM1-671 / 30410-MM1-671

Numbers on the CDI unit:
AKBZ26, MJ8, 131100-4011
AKBZ27, MJ8, 131100-4022
AKBZ37, MF2, 131100-4160
AKBZ38, MF2, 131100-4170
AKBZ47, MF2, 131100-4520
AKBZ57, MF2, 131100-4670
AKBZ65, MMI, 131100-4910
AKBZ66, MMI, 131100-4920

Other names:
EC Ignitor, brain
CDI, ECU computer, Black Box, Ignitor

Honda VF500 VF500F VF500C V30 Magna Interceptor PC12 PC13 igniter ignition module CDI TCI Box
Model: CARI-HO-VF500-PC12-PC13 CDI igniter box
000.157.002 S120 45

Brand

Carmo Electronics
