Digiplex-2S-CDI-TCI-ECU-ignition-zundung-ontsteking
Digiplex-2S

Digiplex 2S PCB Replacement

$736.05 inc GST

Improved Digiplex 2S PCB Replacement.

Please, put your original unit number in the comment box when you order.
(For example MED441A, MED442A, MED446A, MED500A, MED501, MED902A ….)

Your bike will perform better with this advanced ignition board.
For this price we will replace the entire board of your unit with a new advanced version.
NOTE: For this service you have to send us your ECU.

Our PCB replacement board is one of many models designed by motorcycle enthusiasts and manufactured with high quality digital components where possible. Sold all over the world this unit is giving many motorcycle riders the pleasure of improved vehicle performance. Your engine will run better and giving you more riding comfort.

I have read, understood and agree to the Terms & Conditions set out by Vectriq as shown on the T&C page.
Please note that you need to agree to our T&C's before you can proceed.
Category: SKU: Digiplex 2S PCB Replacement
Carmo Electronics

Description

This is an improved Digiplex 2S PCB Replacement.
What is better compared to the original unit:
– increased protection against over-voltage (such as defect voltage regulator/rectifier, bad battery).
– higher resistance against a defective ignition coil and reverse battery connection.
– optimized ignition curve/map to improve engine performance resulting in more power.
– acceleration correction: when the RPM increases the ignition delay changes (in proportion) resulting in a smoother acceleration.
– digital technique: therefor the unit is more accurate and less sensitive to temperature changes.
– spark power control: the unit will change the output to the ignition coil when the battery voltage changes in order to keep the spark power the same.
– start mode: during engine start there is a start delay and the unit will give more current to the ignition coil for a faster start.

The different models for which this improved replacer can be delivered for:
064843443010, MED441A, Ducati Paso 750
064843441010, MED441A, Ducati Paso 750
064843441010, MED441A, Ducati 750 sport
064843442010, MED442A, Ducati Paso 906
064843442010, MED442A, Ducati 900 sport supersport, SS900
581700280000, MED446A, Moto Guzzi California
581700280000, MED446A, Moto Guzzi Nevada 350
581700290000, MED500A, Moto Guzzi California 1100
581700290100, MED501A, Moto Guzzi Nevada 750
581700290200, MED902A, Moto Guzzi sport 1100

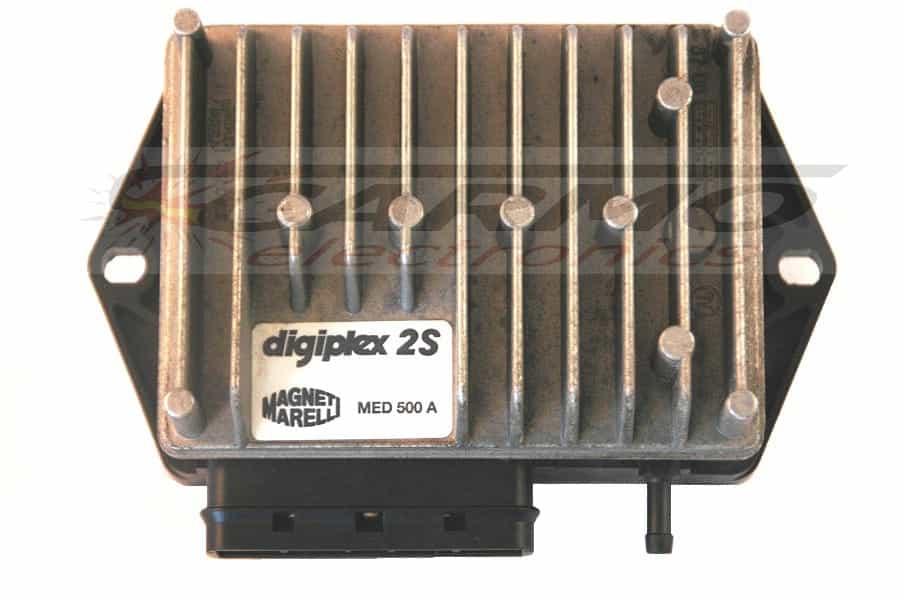

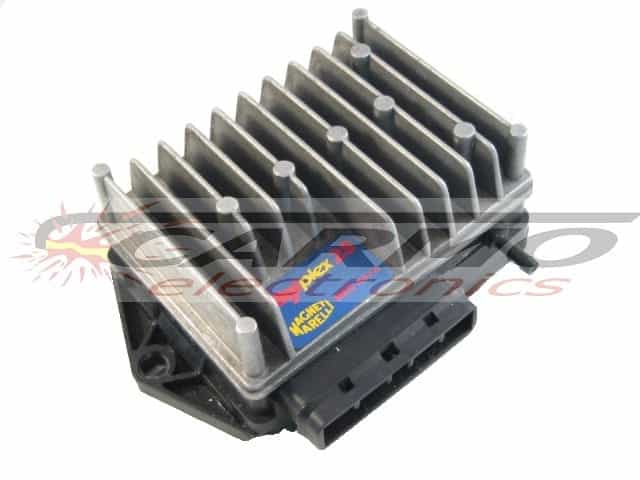

Magneti Marelli DIGIPLEX 2S

Replacer Digiplex 2S
Model: CARI-DI-DIGIPLEX-2S-MED-441A-442A-446A-500A-501A-902A CDI VERV2
000.285.012 S100 20
